Heat Treatment for 42CrMo CNC Parts: What Buyers Should Specify
Heat treatment for 42CrMo CNC parts is a design and purchasing decision, not just a final processing step. This chromium-molybdenum steel is often considered where a combination of strength and toughness is needed. Quenching and tempering can change its mechanical properties, but the outcome depends on the exact grade, section size, starting condition and controlled process route. A buyer should therefore specify the required final condition and inspection evidence rather than ask only for a generic “heat-treated” part.
Start with the material designation
The drawing should identify the applicable material standard and grade. 42CrMo, 42CrMo4 and AISI 4140 are often discussed together, yet their formal requirements and accepted substitutions depend on the governing specification and customer approval. The material certificate should identify the supplied grade, heat number and condition. If a substitute is proposed, compare the actual requirements instead of assuming all names are interchangeable.
Record whether the stock arrives annealed, normalized, pre-hardened or in another condition. This affects machinability, heat-treatment planning and the risk of a later dimensional change.

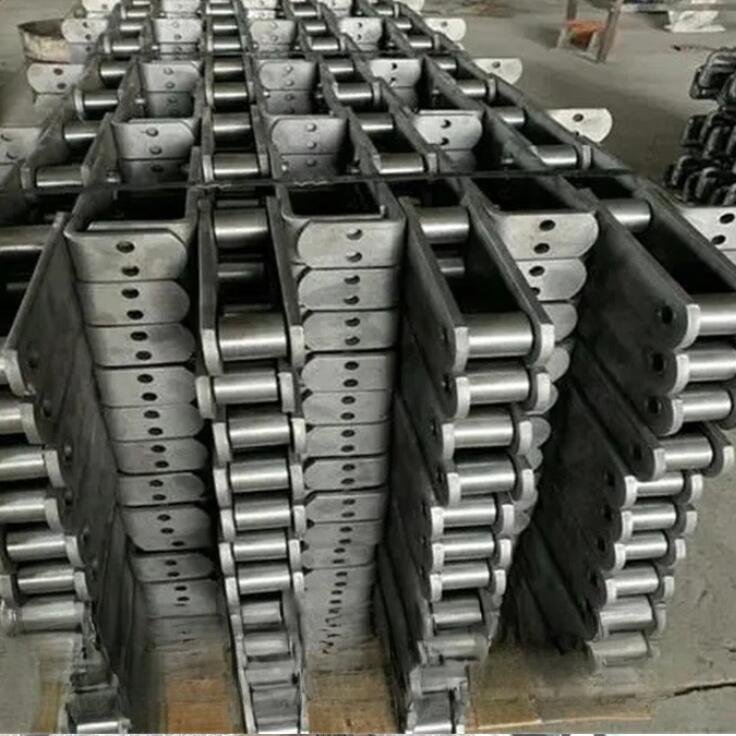

What quenching and tempering change
In a quench-and-temper route, the material is heated and cooled under controlled conditions, then tempered to obtain the specified balance of hardness, strength and toughness. Hardness alone does not fully define performance. A very hard result may not be suitable if the part also needs impact resistance or fatigue life. The required values should come from the engineering drawing or a validated material specification.
Section size matters because the center of a thick part cools differently from the surface. The steel supplier’s data should be consulted for hardenability and achievable properties at the relevant cross-section. Avoid copying a property value from a thin test bar onto a large finished component.

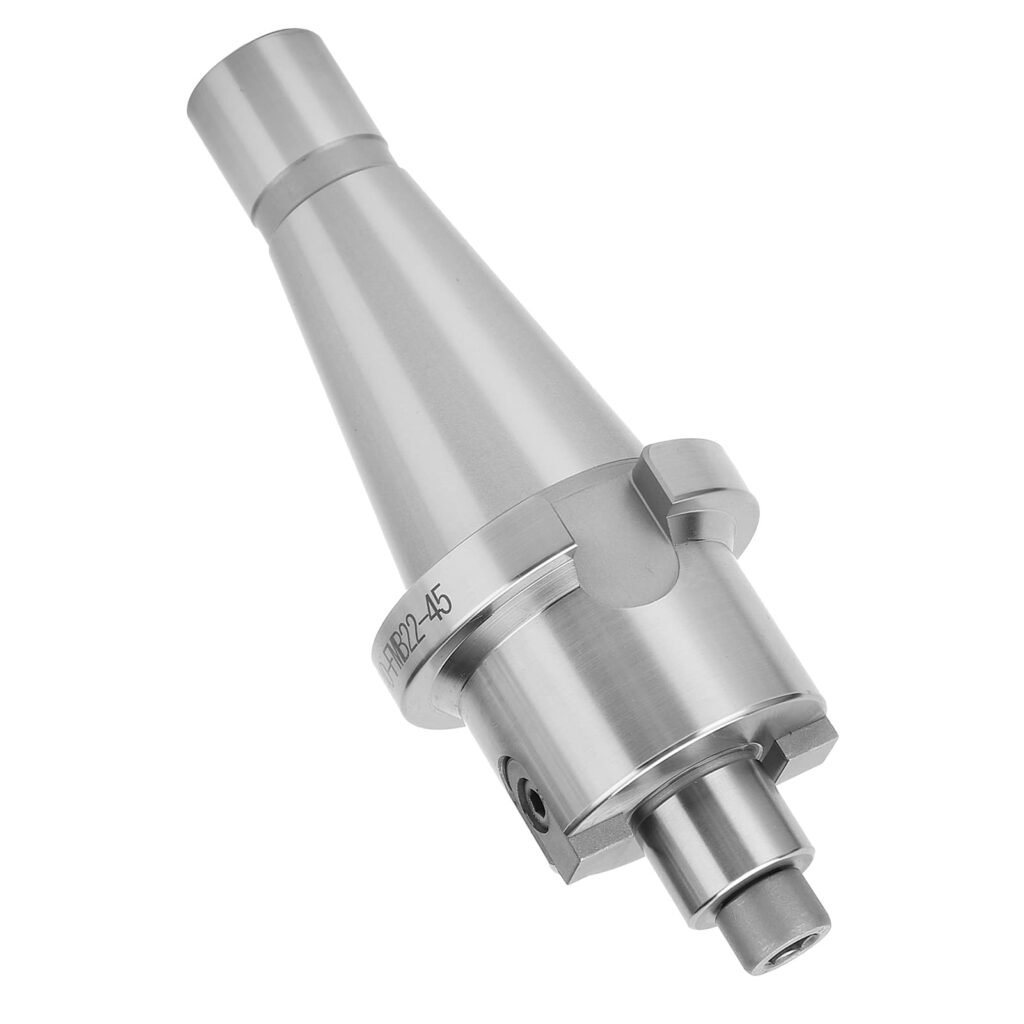

Choose a machining sequence deliberately
A common planning question is whether to machine before or after heat treatment. Rough machining before treatment can reduce the volume of hard machining later, but heating and cooling may move critical features. For precision CNC machined parts, final machining after treatment can recover size and geometry, though the selected tools, access and cost must suit the hardened condition. The route can also include a stress-relief step where the process engineer considers it necessary.
For a part with tight bores, long slender sections or asymmetric stock removal, ask the supplier to identify the datum strategy and the operations reserved for final finishing. The drawing should distinguish dimensions controlled before treatment from those accepted on the completed part.
Distortion is a design risk, not a fixed allowance
Heat treatment can cause size and shape changes from thermal gradients and microstructural transformation. The amount is not a universal percentage. Geometry, material condition, fixturing, furnace loading, quench severity and section differences all affect it. Discuss likely movement and the available finishing allowance with the process team before approving a tight tolerance.
Where function depends on straightness, runout, concentricity or a bearing fit, define how and when those features will be measured. If correction or finish grinding is allowed, put its limits in the plan. If it is not allowed, say so.
Specify acceptance and evidence
A useful purchase drawing or enquiry includes:
- Governing material standard, grade and any approved alternatives.
- Required final heat-treatment condition and the controlling property or hardness range.
- Location and method for hardness checks, if needed.
- Dimensions and geometric tolerances required after all processing.
- Whether surface hardening, decarburization limits or special surface requirements apply.
- Required material and heat-treatment records, traceability and inspection reports.
Questions to ask before ordering
What is the functional load, temperature and expected failure mode? Which properties are mandatory, and which are only preferences? What size and geometry will be treated? Will any final cutting, grinding or coating occur afterward? How will the lot be traced to the certificate and test results? These answers let suppliers quote the same scope and identify a process route that can actually be inspected.
Separate core properties from surface requirements
The core of a part and its working surface may face different demands. A shaft might need a tough core while a contact area needs resistance to wear. Quench-and-temper requirements, localized induction hardening and a coating are different treatments with different inspection needs. A request for “hard 42CrMo” does not tell the supplier which region must meet the requirement or how deep that condition must extend. Mark the functional zones on the drawing and define the governing test method.
Surface condition also matters after heat treatment. Decarburization, oxidation, scale removal or final grinding can alter the working surface and dimensions. If the part will be coated, define whether hardness and critical dimensions are accepted before or after coating. The order of operations should be visible in the process plan so two suppliers do not quote different finished products under the same part number.
Connect the property target to the test location
For a thick or stepped component, one hardness reading on an accessible surface may not represent every section. Specify whether the drawing requires a surface reading, a defined depth, a representative test coupon or a mechanical test from a stated location. The method must suit the part’s size and risk. For precision machined components, dimensional accuracy and material verification should both meet the applicable drawing requirements. If destructive tests are required, agree how samples will be supplied and traced to the production lot.
Ask how the heat-treatment record connects to the material heat number and finished parts. A certificate with a temperature cycle but no part or lot traceability may not answer the buyer’s acceptance question. Conversely, demanding extensive tests without a functional reason can add cost without reducing the relevant risk. The design authority should define the minimum evidence needed to confirm the required condition.
Use a route review to prevent avoidable rework
Before approving production, compare the rough-machined geometry with the final drawing. Thin webs, abrupt section changes and long unsupported features can respond differently during heating and cooling. A supplier may propose extra stock on critical surfaces, temporary supports or a change in sequence. Those proposals need engineering review because they may affect datum relationships and finished dimensions.
For a first article, inspect critical geometry after heat treatment and after final machining. If the part moves beyond the planned finishing allowance, revise the route rather than repeatedly correcting each piece by hand. Record the approved route and inspection points for repeat orders; otherwise a later batch can meet a nominal hardness value while failing fit or alignment.
Frequently Asked Questions
Does heat treatment always improve a 42CrMo part?
Only relative to a defined requirement. A higher hardness is not automatically better if toughness, fatigue behavior or dimensional stability is more important.
Can a finished CNC part be heat treated without changing its dimensions?
Dimensional change is possible. Plan finishing allowance and final inspection around critical features rather than assuming zero movement.
Is 42CrMo the same as 4140?
They may be listed as similar grades, but use the drawing’s standard and approve any substitution against its actual requirements.
