Precision Machined Components OEM/ODM

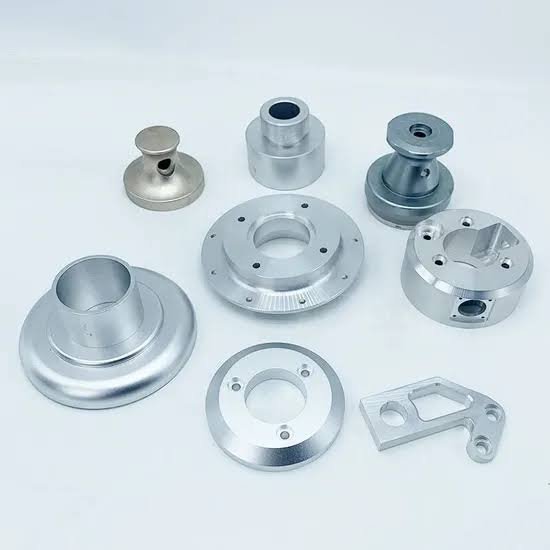

Precision machined components are custom parts produced to fit, align, move, seal, support, or connect other elements in an assembly. They can include shafts, pins, bushings, spacers, blocks, brackets, housings, threaded parts, connectors, and other drawing-based components.

This page is intended for OEM buyers and engineering teams sourcing assembly-ready components from a 2D drawing, 3D model, controlled sample, or technical specification.

Component Types

Projects may include:

Turned shafts, pins, and sleeves
Milled blocks, brackets, plates, and housings
Bushings and bearing-related components
Threaded components and connectors
Parts with holes, slots, grooves, flats, keyways, or mixed features
Prototype components and repeat-production parts
Replacement components based on a verified sample and drawing

Materials

Depending on the drawing and operating requirements, material options may include:

Stainless steel
Alloy steel
Aluminum
Brass
Engineering plastics

Material selection should consider load, wear, corrosion, weight, temperature, conductivity, appearance, availability, machining behavior, and any industry-specific documentation.

Features and Secondary Processes

Custom components may require a combination of machining and secondary operations, such as:

Turning and milling
Drilling, boring, threading, and reaming
Grinding or other finishing operations
Heat treatment
Plating, anodizing, passivation, or other surface treatments
Laser marking or part identification
Deburring and controlled edge finishing

Secondary processes should be defined on the drawing or purchase specification. Cosmetic requirements and functional surface requirements should be identified separately.

Drawing and Tolerance Review

Accurate components begin with a clear drawing. Before quotation, review:

Critical dimensions and functional interfaces
Datum structure and geometric controls
Fits for shafts, holes, pins, bushings, and bearings
Thread standard, size, class, and depth
Surface-finish requirements
Heat-treatment or coating allowance
Burr and edge requirements
Inspection method and report format

Not every dimension needs the same tolerance. Identifying the features that control assembly and performance helps focus manufacturing and inspection effort.

Prototype and Repeat Production

Prototype production can be used to verify fit, assembly, material, and design intent before repeat orders. When the design is approved, the manufacturing plan can be standardized around controlled drawings, tools, fixtures, inspection steps, packaging, and revision records.

For repeat production, buyers should provide the latest drawing revision and identify any approved deviations or sample requirements. Changes to material, tolerance, finish, or packaging should be documented before the next batch.

Inspection and Documentation

An inspection plan may cover:

Incoming material verification
First-piece or first-article checks
In-process dimensional checks
Final dimensions and geometric characteristics
Thread inspection
Surface finish
Visual and coating inspection
Quantity, marking, cleanliness, and packaging

Available documents may include material certificates, dimensional reports, coating or heat-treatment records, and other customer-defined records.

Packaging for Precision Components

Packaging should protect functional surfaces, threads, edges, coatings, and part identification during transport and storage. Options may include individual separation, protective caps, corrosion protection, clean bags, trays, labels, or customer-defined packing.

Packaging requirements should be included in the RFQ when scratches, contact marks, contamination, or mixed revisions would affect assembly.

RFQ Checklist

For an efficient review, provide:

2D drawing and 3D model
Material grade and condition
Quantity and expected annual demand
Critical tolerances and datums
Surface finish and appearance requirements
Heat treatment, coating, or passivation
Inspection and documentation requirements
Marking and traceability requirements
Packaging and delivery requirements
Target application and any known failure risk

If a drawing is incomplete, identify the open decisions rather than allowing them to become unrecorded manufacturing assumptions.

Why Page Ownership Matters

This page should remain focused on OEM/ODM component sourcing and assembly requirements. Detailed explanations of the CNC machining service, equipment, and process should live on the separate precision CNC machined parts page. Clear page ownership helps buyers reach the right page and prevents two pages from competing for the same search intent.

Frequently Asked Questions

What files are needed for a quotation

A controlled 2D drawing is the best source for dimensions, tolerances, materials, finishes, and notes. A 3D model helps with geometry. A physical sample can support reverse-engineering review when ownership and dimensional requirements are clear.

Can one supplier manage machining and finishing

This depends on the required processes and supplier network. Confirm which operations are performed internally or externally and which inspection records are available.

How should critical dimensions be identified

Use a clear datum structure, tolerance scheme, and notes that distinguish functional features from general dimensions. Include inspection requirements for characteristics that affect assembly or safety.

How can repeat orders remain consistent

Control the drawing revision, material, approved process, inspection plan, packaging, and any accepted samples or deviations.
