Defining the Core Aspects of din iso pin standards
Standardized alignment pins ensure dimensional interchangeability across different countries. Global supply chains require consistent measurements for seamless production. German and international standardization bodies unified their requirements to assist designers. They created unified parameters for diameter, length, and edge chamfers. These unified parameters eliminate confusion when sourcing parts from different continents. Engineers no longer face unexpected fitment issues during final assembly phases. The combined system covers cylindrical, tapered, grooved, and spring-type components. Every specific category serves a distinct purpose in mechanical engineering. For example, solid cylinders secure permanent assemblies with extreme holding power. In contrast, spring varieties accommodate wider hole tolerances during manual installation. Standardization ensures that a part bought in Europe fits machinery in Asia. This level of compatibility streamlines global maintenance and reduces machinery downtime.
| Standard | Type | Material | Typical Hardness | Tolerance Class |
|---|---|---|---|---|

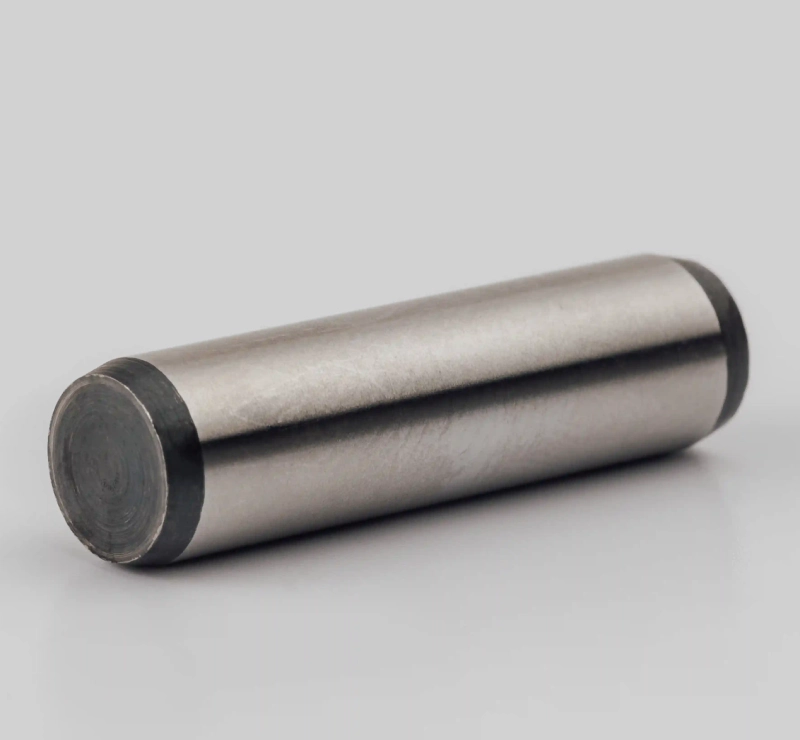

| ISO 8734 | Dowel Pin (Hardened) | Steel C45W / 100Cr6 | 50 to 60 HRC | m6 |
| ISO 2338 | Dowel Pin (Unhardened) | A2 Stainless Steel | 125 to 245 HV | h8 / m6 / h6 |

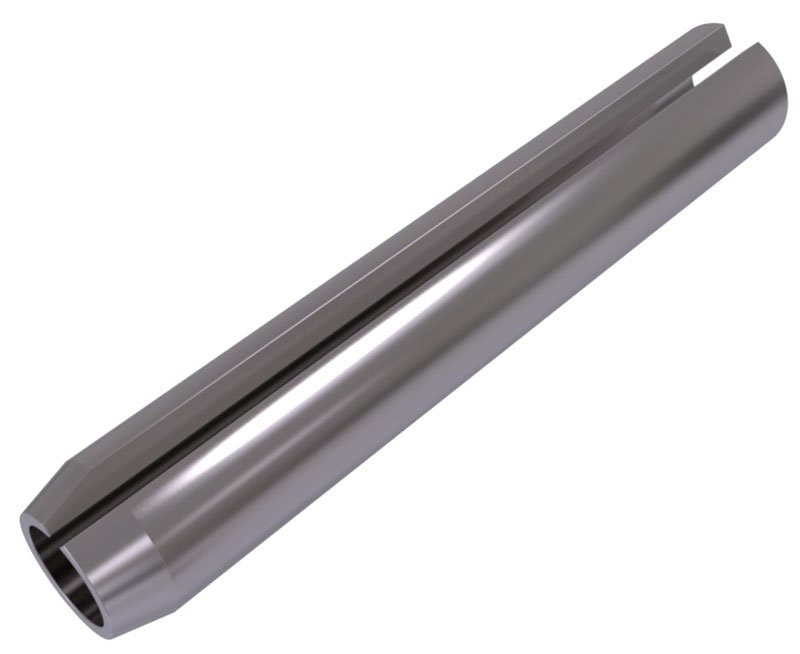

| ISO 8752 | Spring Pin (Heavy Duty) | Spring Steel | 420 to 520 HV | Nominal Diameter |
Crucial Materials and Heat Treatment Processes for Standardized Pin Specifications
Metallurgy plays a vital role in determining the final performance of alignment fasteners. Manufacturers often select high-grade carbon steel C45W to ensure robust basic strength. They apply induction hardening to create a wear-resistant outer layer on the metal. This process leaves the inner core ductile to absorb sudden operational impacts. When application environments contain aggressive moisture, engineers shift to stainless alloys. A specialized stainless steel shear pin offers both corrosion resistance and predictable failure points. Such components prevent overload damage by breaking cleanly under pre-determined mechanical stress. For high-temperature applications, specific heat-resistant steel grades maintain their internal structure. Proper heat treatment guarantees that the metal does not deform under pressure. Industrial operations rely on these physical properties to maintain continuous manufacturing safety. Each material variant undergoes strict quality control tests before shipping to customers.
| Material Grade | Tensile Strength (MPa) | Corrosion Resistance | Best For |
|---|---|---|---|
| C45W Steel | 580 - 780 | Low | Heavy Duty Tooling |
| 100Cr6 Steel | 650 - 850 | Medium | Precision Bearings & Pins |
| 316 Stainless Steel | 500 - 700 | Very High | Marine & Chemical Plants |
Analyzing the Industrial Functions of Various Locating Fasteners
The standard categories mentioned above serve specific alignment functions in complex engineering systems. Industrial setups utilize dowel pins to establish exact positioning between mating plates. These hardened parts withstand heavy lateral forces without shifting their spatial coordinates. Tapered varieties allow users to maintain alignment even after repeated maintenance cycles. Unhardened parallel pins offer a cost-effective solution for light-duty positioning tasks. In contrast, slotted spring styles provide a flexible solution for non-precision fastening needs. Modern manufacturing plants rely on din iso pin standards to choose the best configuration. Each unique fastener style matches a specific load profile and assembly method. Using the correct variety ensures structural integrity and reduces the risk of alignment shifts. Technical departments keep detailed databases of these specifications to streamline their drafting workflows.
Optimizing Procurement with Unified Precision Locating Pins
Procurement managers face serious challenges when sourcing mechanical components from various global suppliers. Incompatible fastener specifications lead to assembly line delays and costly retrofitting procedures. Utilizing din iso pin standards solves these issues by guaranteeing universal size consistency. Every certified manufacturer produces parts that fit perfectly into pre-drilled holes. This level of standardization simplifies inventory management and lowers overall storage costs.
Companies can reduce their backup stock because replacement parts remain easily available. Furthermore, international safety regulations encourage the use of these certified fasteners. Insurance companies and quality auditors look for standardized components during routine inspections. Adhering to recognized standards protects businesses from liability and ensures high-quality machinery. Smart manufacturing companies invest in standardized parts to protect their production processes.
How Do Manufacturers Select The Correct Tolerance Class For Dowel Pins?
Choosing the perfect fitment tolerance depends entirely on the design requirements. Engineers evaluate whether the assembly requires permanent fastening or frequent disassembly. An interference fit like m6 secures the pin tightly under continuous vibration. This tight fitment requires mechanical force or hydraulic press tools during installation. Alternatively, a clearance fit like h8 allows manual removal without damaging mating parts. Designers analyze the thermal expansion properties of the metal components before final selection. Proper tolerance selection prevents joint slippage and keeps machinery operating safely. Consulting technical specification tables ensures the chosen fitment matches engineering requirements perfectly.
